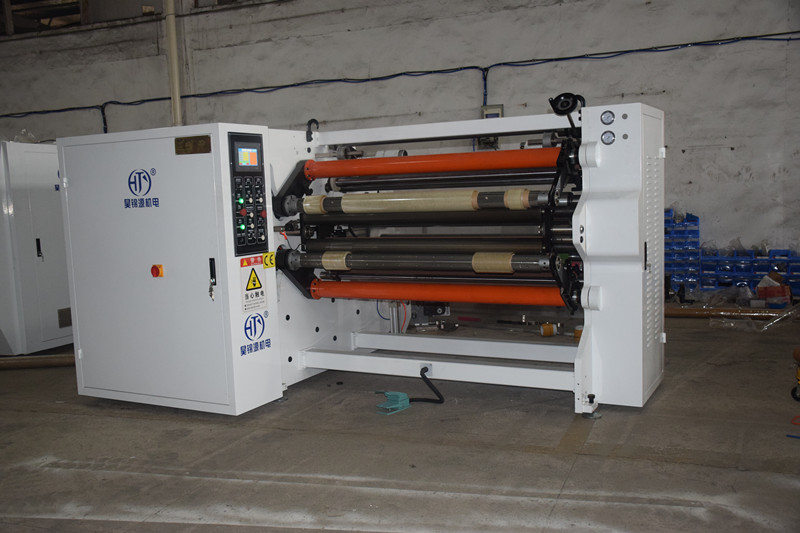

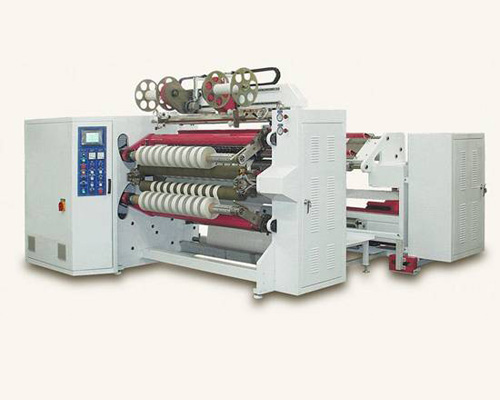

HJY-FQ01 双轴中心表面分条复卷机

Thumbnail 1 Thumbnail 1

产品类别:分切机系列

产品编号:91329-353

产品型号:HJY-FQ01

  • 用途&规格
  • 产品特点
  • 配件选购
用途 Application
各种纸张,薄膜,胶带等材料之分切
Suitable for slitting any kinds of paper, film and tape.

机器规格 Specification
机器制造宽度:1M- 1.8M
最大卷取直径:450mm
卷取管心内径: 1.5 "- 3 "
最大入料直径:1000mm
最小分条宽度:5mm
最大运转速度:200M/Min
Machine Width : 1.0M-1.8M
Max. Rewind O.D: 450mm
Rewind Core I.D : 1.5"-3“
Max. Unwind O.D : 1000mm
Min. Slitting Width: 5mm
Machine Speed: 200M / Min
特点 Features
※卷取动力部分:两个卷取马达配合主机马达做三马达连动控制,主机马达隔断放料及收卷马达控制张力,成品张力稳定,外观美观。
※Rewind Drive: Two rewind motors and one main motor form three motors driven, main motor separates rewind material from unwind material, and rewind motor controls tension during operation to make product tension stable.
※卷取机构部分:卷取摇臂采用气动连动控制平衡,卷取时可自动调节接触压力。接触压力可自行设定。本机也可以选配间断式导轮卷取,更广泛分切其它材料。
※Rewind Device: Rewind arm adopts connective air arm to control balance, can adjust touch pressure automatically rewinding, Touch pressure can set freely, This machine also can use disconnected touch roller to slit any kind of material.
※电机控制部分:操作界面采用LCD触控屏,可直接在屏幕上设定各种卷取条件及运转状况。控制部分采用可程式控制器进行机械动作控制,备有自我检测系统,机器故障时可自行诊断故障原因。
※Electric Control: Control panel with LCD touch screen for setting rewind method and operation condition, Control system is PLC unit with error detective system, which can automatically detect error.
※辅助放料装置:材料卷出时经过表面压输,可使材料更平顺,并降低噪音(适用于粘性材料)
※Output Device: When material outputs, it goes through surface touch roller, which can make material smoother, and reduce noise.(Esp. for adhesive material).
※辅助拉料装置:材料卷出时可以经由马达辅助拉料,节省拉料时间,降低材料损耗。
※Input Device: Machine motor helps input material, which can save time and avoid wasting material.
※基本放料形式:他离式放料机座,放料直径较大。加装其他装置的空间可能性更大。
※Unwind Method: Separated machine base, with big unwind diameter, It has high possibility to install other device because of enough space.
选购配件 Optional Parts
※原料辅助上料:采用油压式动力,适合无行车之车间,可节省人力及缩短上下料时间。
※Unwind Pick-up Lift: For loading jumbo roll on the machine quickly and time saving hydraulic drive.
※放料部减音罩:降低材料卷出时所产生的噪音并可提升工作环境的品质与安全。
※Noise Reduction Hood: Reduce the production noise and make sure working environment safe and high quality.
※耳料处理装置:可选配独立式或连体式排线机卷取废料,另外还有强力风车可适用于无粘性之材料。
※Trim Remove Device: Can choose independent or connected method to rewind trim material, or use strong blower for non-adhesive material.
※自动对线装置:适用于印刷后分切,可精确对准印刷基准线,进行分切。
※Web Guide: Suitable for slitting after slitting, can lever at printing line accurately to slit material.
